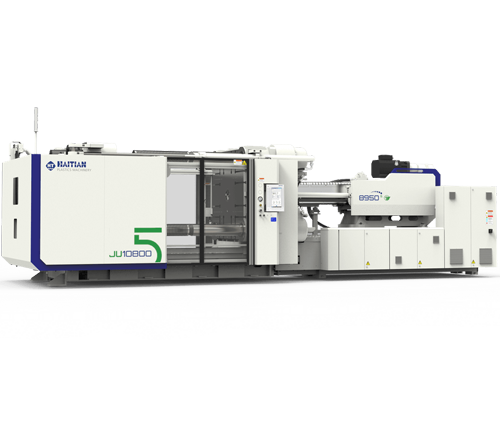

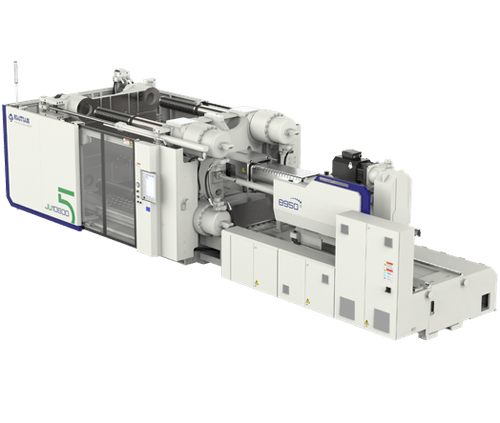

Haitian JU 5 Series

HAITIAN JU 5 SERIES

4,500 – 88,000 kN

SERVO-HYDRAULIC SOLUTION

TWO-PLATEN SPACE SAVING

Smart. Efficient. Energy-Saving.

The 5th generation of the Haitian Jupiter Series represents a significant evolution in two-platen injection molding technology, engineered for enhanced performance, reliability, and energy efficiency. Building on years of proven success, the new generation introduces key upgrades across the entire system—ranging from a reengineered clamping unit for faster, smoother movements to a more rigid platen design that improves stability and mold protection. The injection unit has been refined for greater precision and responsiveness, while the integrated KEBA control system delivers a more intuitive, flexible user experience with advanced monitoring and process control features.

One of the standout advancements in the 5th generation Jupiter Series is its focus on energy optimization and intelligent operation. The machines are equipped with Haitian’s latest servo-hydraulic technology and a newly developed electric charging system (standard on small and medium injection units), significantly reducing energy consumption while maintaining high output and repeatability. Smart production features, including real-time data tracking and Industry 4.0 compatibility, make the new Jupiter ideal for large-part molding in automotive, appliance, and logistics applications. It’s a future-ready platform that blends high performance with lower operating costs—offering manufacturers a competitive edge in demanding production environments.

Clamping Unit
506 – 9,892 US Tons

Injection Volume (PS)
27.20 to 4,311 oz.

Mold Platen Size
31.89”x31.89
133.86”x111.02”

Tiebar Distance
810×810 –
3400×2820 mm

Controller
KEBA
(Austria)

Screw Diameter
2.36”x11.81”

67e35509c9f6144d5a21f445_energy-saving-p-1600

INJECTION UNIT

New electric charging for small and medium injection units improves the plasticizing speed and quality. Industry leading injection capacities for large injection units.

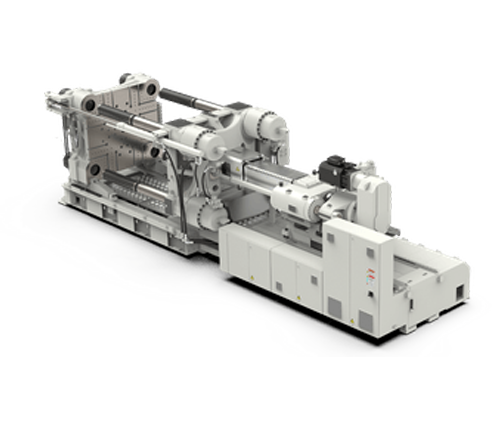

CLAMPING UNIT

The four short-stroke clamping cylinders on the fixed platen ensure a fast and uniform clamping force with real-time monitoring by a pressure sensor and high repeatability.

Fast, Reliable and Quiet

Parallel lock nut operation ensures fast and accurate response.

CONTROL SYSTEM

15.6-inch touchscreen – the latest control technology provides and intuitive, responsive experience, enhancing interaction efficiency.

POWER SYSTEM

Fifth generation injection molding machine with dedicated tailor-made servo motor

INJECTION UNIT

The non-welding process of power pipelines reduces the risk of oil leakage, improves the cleanliness of pipelines, and extends the service life of hydraulic components.

INJECTION UNIT

The plasticized parts have been comprehensively upgraded, and the plasticizing performance has been greatly improved. The wear resistance of the plasticized parts has doubled, and the service life has been extended.

INJECTION UNIT

The energy-saving insulation device adopts a double-layer barrel cover structure and a detachable energy-saving insulation structure design, which effectively improves the heating and insulation effect.

CLAMPING UNIT

High-rigidity movable platen support device and guide mechanism on the bottom and side of machine bed ensures the precision of movable platen during loading of heavy molds

INDUSTRIES

AUTOMOBILE INDUSTRY

High-precision, performance-critical components that must meet strict industry standards for strength, dimensional stability, and consistency—often at high volumes and tight tolerances.

APPLIANCE INDUSTRY

Appliance and white goods components present a unique set of molding challenges that combine aesthetic expectations with mechanical performance. These parts require high-quality surface finishes, tight dimensional control, and long-term durability under repeated use and environmental stress.

ULTRA LARGE PARTS

Molding ultra-large parts is a specialty that demands a unique combination of high-tonnage machinery, expertly engineered molds, and deep process knowledge. These parts—such as large automotive panels, pallet containers, appliance housings, or structural components—require massive shot capacities, extended platen distances, and powerful clamping forces to handle both size and material flow without compromising part integrity.

LOGISTICS INDUSTRY

Logistics and pallet parts are all about strength, durability, and cost efficiency. From a molder’s perspective, these heavy-duty components—pallets, bins, totes, crates, and dunnage trays—must withstand repetitive impact, heavy loads, and harsh environments, all while being produced at a competitive price point.
